Ulefone Armor 33 Pro 5G Rugged Phone 512GB ROM 120Hz

Ulefone Armor 33 Pro Specifications

25500mAh Mega Battery

3.4"Vast Rear Screen | Infinite Halo 2.0| 118 dB Loudspeaker | Up to 32GB + 512GBROM（32GBRAM =16GB+16GB)

Dual Screen Settings

● Dual Screen Mirroring: The main and back screens display the same content simultaneously. By default, the currently active screen supports touch operations, but you can manually set either screen to support touch operations.

● Dual Screen Intelligence Display: This mode supports switching between the main and back screen, but only one screen can be displayed at a time.

● Main Screen Display: The back screen is disabled.

● Sub-screen Display: The main screen is disabled.

CPU Model ：MediaTek Dimensity 7300X

AI Processing Unit：MediaTek NPU 655

64MP Night Vision Camera

5G/4G/3G/2G

*Not support other carriers such as Verizon, AT&T 5G network.

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile

*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier's testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor 33 Pro 5G supports their network.

Ulefone Armor 33 Pro Specifications

Physical Characteristics

Color

Phantom Black

Material

PC + Aluminium

USB

Type-C, USB 2.0

Headphone Jack

3.5mm Headphone Jack

Expansion Connector

uSmart Expansion Connector 2.0, suppors uSmart series accessories, allows simultaneous charging while the uSmart Connector is in use.

Card Slots

3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD

Keys

Right: Power button (Fingerprint)+Volume button+Camera Key, Left: Custom Key

Size & Weight

Product Size

185.5 x 85.5 x 34 mm / 7.3 x 3.37 x 1.34 inches

Product Weight

776.5g / 27.39 ounces

Package Size

109 x 207 x 88 mm / 4.29 x 8.15 x 3.46 inches

Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Ruggedness

Certification

IP68/IP69K/MIL-STD-810H

Splash, Water, and Dust Resistant

Maximum depth of 2 meters up to 30 minutes

Drop resistance

Up to 1.5m tall

Working Temperature

-30℃ - 55 ℃ (-22℉ - 131℉)

Main Display

Screen Size

6.95-inch

Screen Resolution

1080 x 2460 FHD+

Aspect Ratio

20.5:9

PPI

387

Brightness

700nits (peak brightness)

Color Depth

10-bit

Refresh Rate

120Hz

Screen-to-Body Ratio

87%

Multi-touch

10

Back Display

Screen Size

3.4-inch

Screen Resolution

412 x 960 HD+

Brightness

Max 600 nits

Refresh Rate

60Hz

Multi-touch

5

Dual Screen Settings

Display Mode

Dual Screen Intelligence Display: This mode supports switching between the main and back screen, but only one screen can be displayed at a time.

Main Screen Display: The back screen is disabled.

Sub-screen Display: The main screen is disabled.

Dual Screen Mirroring: The main and back screens display the same content simultaneously. By default, the currently active screen supports touch operations, but you can manually set either screen to support touch operations.

Double-tap to Wake/Sleep

In Main Screen Display, Sub-screen Display, and Dual Screen Mirroring modes, double-tapping the touch-enabled screen can wake or sleep the screen.

Processor

CPU Model

MediaTek Dimensity 7300X

Main frequency

2.5GHz

Production Process

4nm

CPU Core

8, 4x Arm Cortex-A78 up to 2.5GHz4x Arm Cortex-A55

GPU

Arm Mali-G615 MC2, 1100MHz

AI Processing Unit

MediaTek NPU 655

RAM & Storage

RAM

16GB LPDDR5 + 16GB Dynamic RAM (The Dynamic RAM can be extended in Settings if needed.)

Storage

512GB UFS3.1

Max. Expansion Supported

2TB

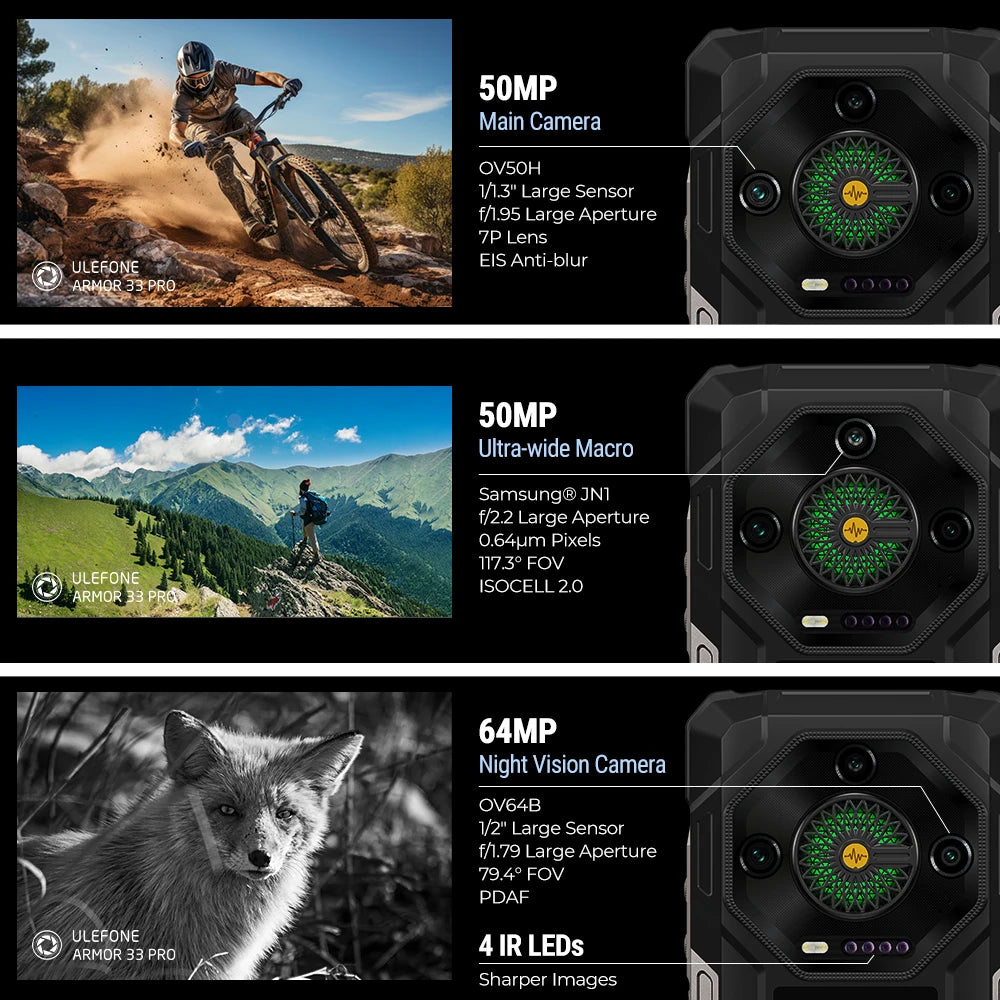

Rear Camera

Rear Camera Numbers

3

Main Rear Camera

Pixel: 50MP

Details: OV50H CMOS sensor, 1.197μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture

Night Vision Camera

Pixel: 64MP

Details: OV64B CMOS sensor, FOV 79.4°, ƒ/1.79 large aperture

Ultra-wide Lens

Pixel: 50MP

Details: Samsung JN1 CMOS sensor, FOV 117.3°, ƒ/2.2 large aperture

Flash

2

Video Recording Resolution

4K(30fps), FHD(30fps), HD(30fps), VGA(30fps)

Special Features

Normal mode, Night vision mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent scanning

Front Camera

Pixel

32MP

Details

Details: Samsung GD2 CMOS sensor, 0.8μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture

Video Recording Resolution

FHD(30fps), HD(30fps), VGA(30fps)

Special Features

Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait

Battery & Charging

Capacity

25500mAh

Watt Hours Per Battery

98.685 Wh

Battery Type

Lithium-ion polymer battery

Charging Details

66W, 11V6A/11V3A

Reverse Charge

Supports wired reverse charging, 10W

Standby Time

1380 Hours

Talk Time

104 Hours

Network & Connectivity

Card Type

Nano+Nano+microSD

Cellular

5G/4G/3G/2G

*Not support other carriers such as Verizon, AT&T 5G network.
*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile
*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier's testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor 33 Pro 5G supports their network.

Band Details

5G: Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/
26/28A/28B/32/66/71
TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10

Standby Mode

Dual sim dual standby

VoNR

Support

VoLTE

Support

WiFi

WiFi 6E (2.4GHz/5GHz/6GHz), 802.11a/b/g/n/ac/ax

Bluetooth Version

BT5.4

Navigation

GPS/GLONASS/Beidou/Galileo/QZSS/NavlC GPS

Audio

Speaker Numbers

1

Speaker Model

SPK BOX

Speaker Power

Max 4W

Smart PA

AW88394

Loudness

118dB

Equivalent Cavity

9cc

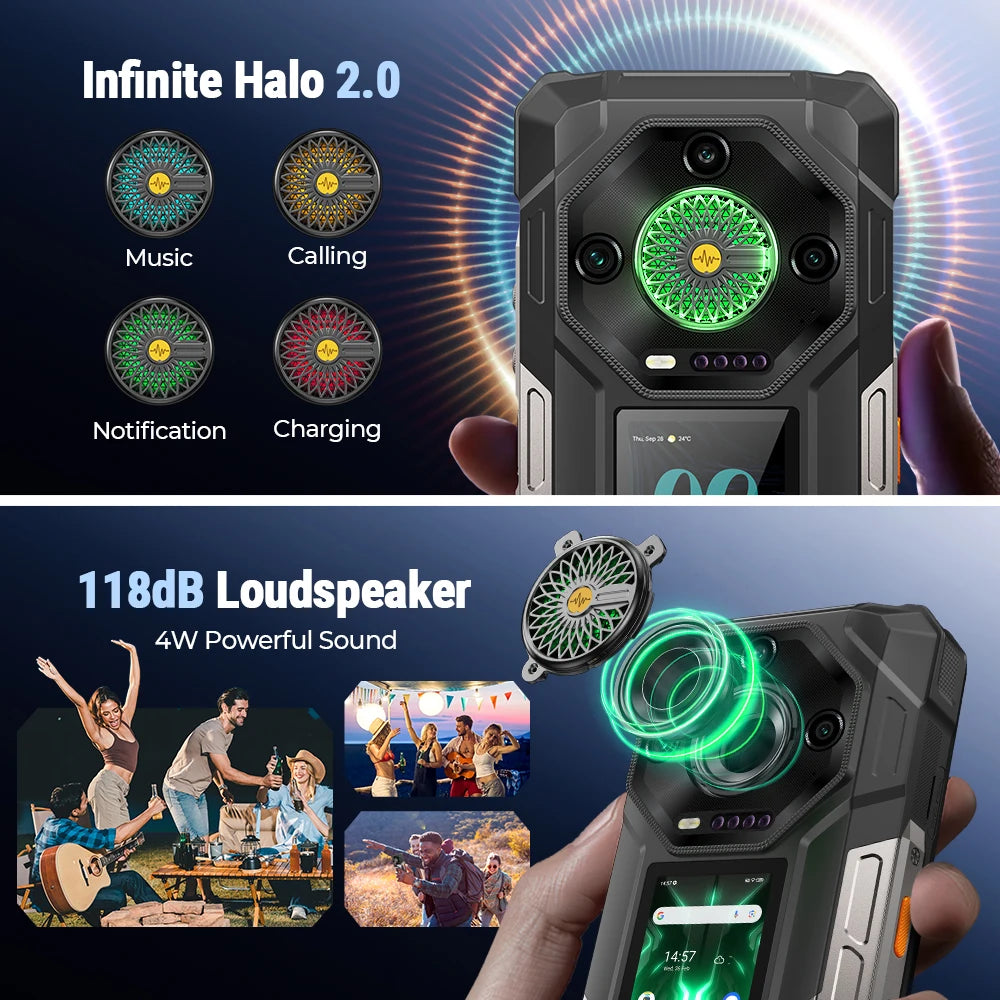

Infinite Halo 2.0

Number of LEDs

3, Tri-color

Supported Modes

4, Music, Calling, Notification, and Charging

Customizable Activation Time

Support

One-key Turn-off Light

Support, via Do Not Disturb mode in the dropdown menu or Settings

Security

Fingerprint ID

Support

Face Unlock

Support

System & Features

Android Version

Android 14

Pre-installed APP

Google Assistant, Calculator, Google Calendar, Camera, Children Space, Chrome, Cleaning Assisitant, Clock, Contacts, Google Drive, Easy Launcher, Files, Find Device, FM Radio, Freezer, Gallery, Game Booster, Gmail, Google, Google TV, Netflix, Google Maps, Google Meet, Google Messages, Mobile Guardian, Outdoor Toolkit, Phone, Google Photos, Google Play Store, Remote Control, Safety, Service Center, Settings, SIM ToolKit, Sound Recorder, Theme, Widget Box, YouTube, YT Music,Translate

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2

Video Format Supported

MOV/MKV/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support,headset-free FM radio

Cell Broadcast

Support

Sensor

Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Infrared sensor

Special Features

Underwater Camera

Support

Gloves Mode

Support

Digital Toolbox

Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound, Mirror

OTG Function

Support

NFC

Support

IR Blaster

Support

Others

Packing List

1 x Phone
1 x AC Power Charger, 66W
1 x Type-C to Type-C Data Cable (100cm)
1 x Protective Film (Pre-installed)
1 x SIM Needle
1 x Lanyard
1 x Multi-language User Manual
1 x Warranty Card
1 x Charging Instruction Card
1 x Safety Prompt Card

Product Certification

CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133
